Aly007 720P HD P2P Mega Piexels Wireless IP Camera Outdoor Free Iphone Android App Software Mobiles
View Large

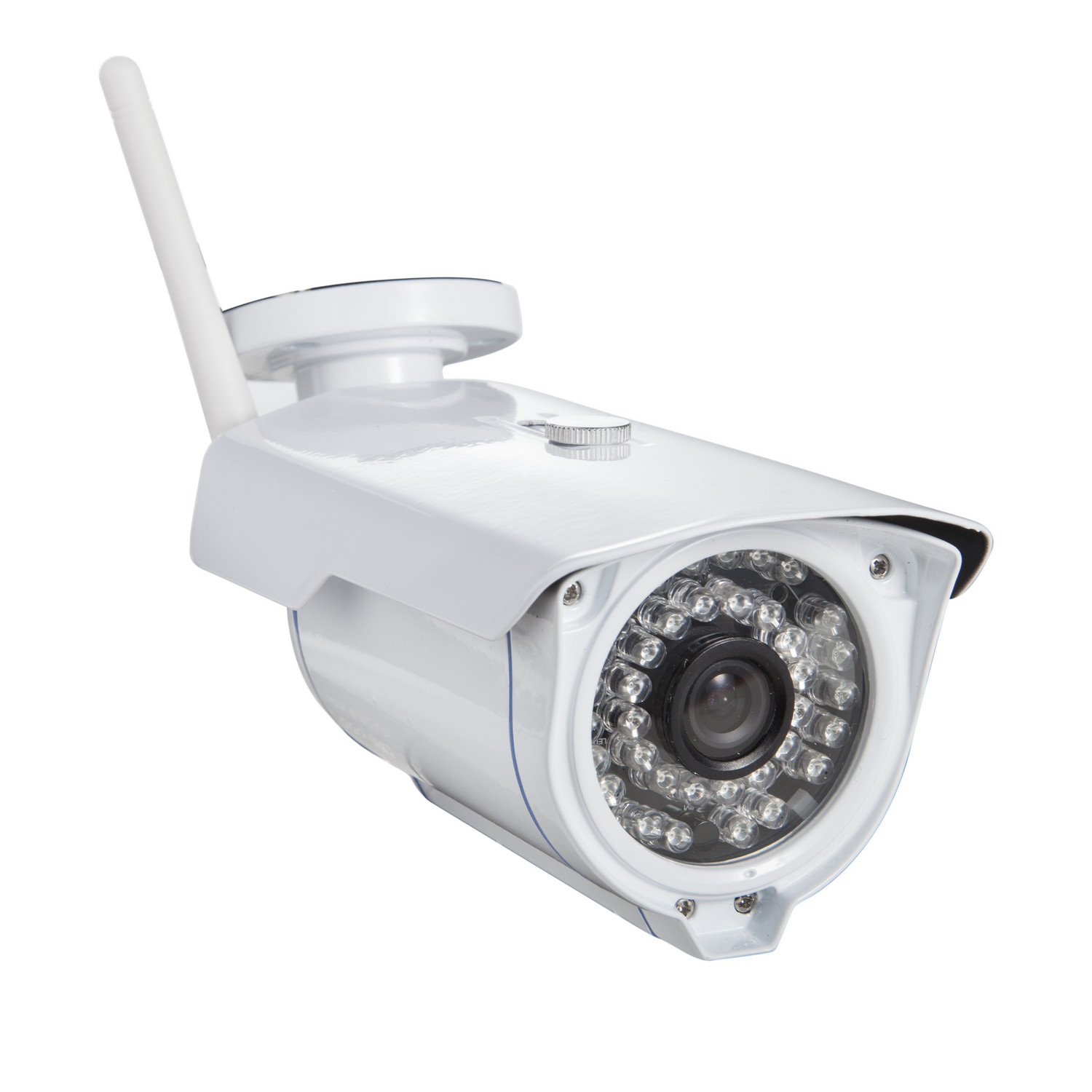

Product Name : Aly007 720P HD P2P Mega Piexels Wireless IP Camera Outdoor Free Iphone Android App Software Mobiles
Product Origin : China
Product Category : Network/IP cameras
More Products : Click here!
Contact Details : Shenzhen Alytimes Technology Co., LTD
Product Code : aly007
Product Details




































































































































































Model No.: Aly007
System Main Processor Hisilicon processor,built-in ARM9 and a high-speed video co-processor.
Operating system Embedded Linux OS
Image Sensor Sensor High Definitioin Color CMOS Sensor
Display Resolution 1280*720 (1.0 Megapixel)
Min.Illuminatioin 0.1 Lux / F1.2 (With IR Illuminator)
lens Lens Type Glass Lens
Lens Parameter   Focal Length:3.6 mm;  Aperture:F 2.4
Angle of View 65°
Video Image Compression H.264.
Image Frame Rate 30fps maxmium, downward adjustable
Resolution  720P(1280 x 720), VGA(640 x 360), QVGA(320 x 180)
Image Adjustment Automatic
Infrared Mode  Automatic
Night Visibility  36pcs IR-LEDs, night vision range up to 15 metres
Filter Switch(IR-Cut) Built-in IR Cut, no color deviation indoor or outdoor.
Record TF Card Record Support  Built-in TF card, up to  128GB.( only support FAT32 file system), Note: the standard version didn't include TF card, if you need, please ask the manufacturer add it for you.
Record Mode Alarm Record; Motion Detection Alarm Record; Timing video; Manual Record.
Record Standard VGA @ 25 fps
Playback Support remote playback.
Network Ethernet RJ-45 Ethernet
Wireless Standard  IEEE 802.11 b/g/n,  Security support :WEP, WPA, WPA2 Encryption.
Online Visitor Online Visitor  LAN support 10 people, WAN support 5 people.
Onvif Support Onvif Protocol, Support NVR (above Onvif version 2.4.2)
Alarm Alarm  Supports Motion detection Alarm,  Phone push alarm, Email alarm.
Others Product Type Metal Gun type / Waterproof outdoor use
DC  Power DC12V/1A..
Working Temperature 0~55 °C
Working Humidity 10%- 90% RH
Size Item size: 165mmx83mmx72mm  (LxWxH)
Packaging size:182mmx110mmx149mm(LxWxH)
Weight N.W.:500g        G.W.: 750g (Note:Actual Weight Final)
Accessories Adaptor, User Manual, Bracket,Screw.
System

Required
SmartPhone &  TablePC  Support iOS and Android system, Provide free App "APCam"
PC  Only support remote monitor on Internet Explorer(IE) browser.
Certification CE,FCC,RoHS
Warranty Limited 2-Year Warranty
