Product Name : | VIBRATION METER - VB-8212 振動測震儀 |
| Product Origin : | China Taiwan | |
| Product Category : | Lutron | |
| More Products : | Click here! | |
| Contact Details : | 運揚有限公司 WANCO LIMITED | |
| Product Code : | VB-8212 |
原廠產品詳情網址，歡迎瀏覽：
https://www.lutron.com.tw/products/403/vibration-meter
振动计/振動測震儀
Model : VB-8212
用專業震動計達成精確與可靠
VB-8212 振動計為工業機械提供準確且可靠的振動測量，是狀態監測與維護的重要工具。
VB-8212 的特殊特點：
1. 工業應用：設計用於監測工業機械振動，以評估機器狀況並識別平衡不良、錯位及鬆動等問題。
2. RMS 與峰值測量：測量 RMS 與峰值值，提供振動等級的全面評估。
3. 寬頻範圍：涵蓋 10 Hz 至 1 kHz 的頻率範圍，符合 ISO 2954 靈敏度要求。
4. 大型 LCD 顯示器：配備超大型 LCD 螢幕，數字尺寸為 15 毫米，便於閱讀，並具備資料儲存與記憶功能，可記錄最大值與最小值。
5. 完整套裝：配備獨立的震動探針、磁性底座及硬質攜帶盒，方便且多功能使用。
VIBRATION METER
VB-8212
Product Overview
Achieve Precision and Reliability with a Professional Vibration Meter
The VB-8212 Vibration Meter provides accurate and reliable vibration measurements for industrial machinery, making it an essential tool for condition monitoring and maintenance.
Exceptional Features of the VB-8212:
1. Industrial Applications: Designed for monitoring industrial machinery vibrations to assess machine condition and identify issues such as poor balance, misalignment, and looseness.
2. RMS and Peak Measurement: Measures both RMS and peak values, offering a comprehensive assessment of vibration levels.
3. Wide Frequency Range: Covers a frequency range of 10 Hz to 1 kHz, meeting ISO 2954 sensitivity requirements.
4. Large LCD Display: Features a super large LCD display with a 15 mm digit size for easy readability, along with data hold and memory functions to record maximum and minimum values.
5. Complete Set: Comes with a separate vibration probe, magnetic base, and a hard carrying case for convenient and versatile use.

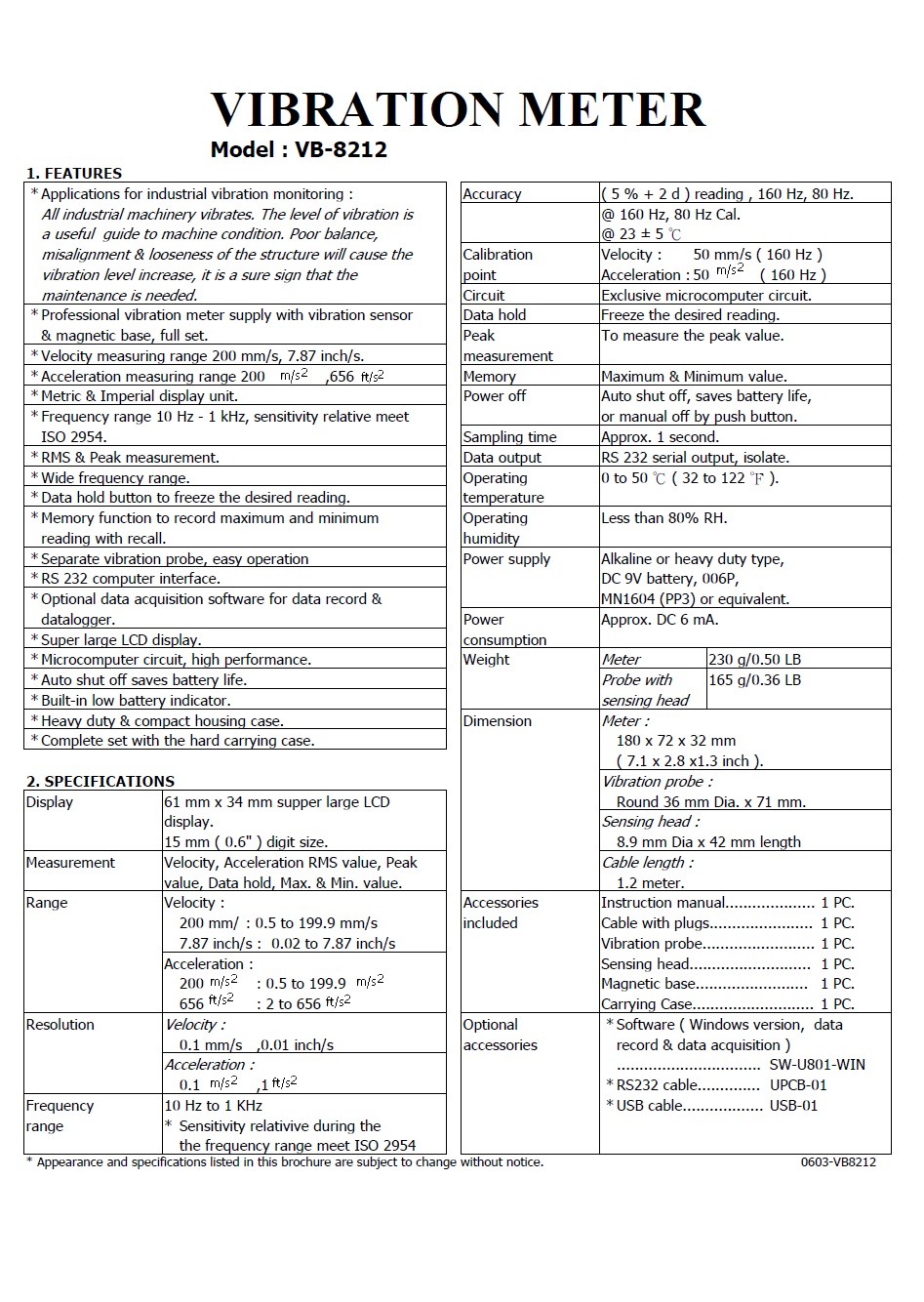

Technical Specifications:
– Display:
– Size: 61 mm x 34 mm super large LCD
– Digit Size: 15 mm (0.6″)
– Measurement Functions:
– Velocity:
– Range: 0.5 to 199.9 mm/s (200 mm/s max)
– Resolution: 0.1 mm/s
– Range: 0.02 to 7.87 inch/s (7.87 inch/s max)
– Resolution: 0.01 inch/s
– Acceleration:
– Range: 0.5 to 199.9 m/s² (200 m/s² max)
– Resolution: 0.1 m/s²
– Range: 2 to 656 ft/s² (656 ft/s² max)
– Resolution: 1 ft/s²
– Accuracy: ±(5% + 2 digits) reading @ 160 Hz, 80 Hz, within 23 ± 5℃
– Frequency Range: 10 Hz to 1 kHz (sensitivity relative meets ISO 2954)
– Calibration Points:
– Velocity: 50 mm/s at 160 Hz
– Acceleration: 50 m/s² at 160 Hz
