Product Name : | PRECISION 0.01 degree THERMOMETER - TM-917HA 高精度溫度計 |
| Product Origin : | China Taiwan | |
| Product Category : | Lutron | |
| More Products : | Click here! | |
| Contact Details : | 運揚有限公司 WANCO LIMITED | |
| Product Code : | TM-917HA |
PRECISION 0.01 degree THERMOMETER
Model: TM-917HA 高精度溫度計
用專業溫度計達成精確與多功能性
TM-917HA 精密溫度計提供精確且可靠的溫度測量，解析度高達 0.01 度，是各種工業、實驗室及環境應用中不可或缺的工具。
TM-917HA 的卓越特點：
1. 高精度與解析度：提供高精度及0.01度的解析度，適合專業使用。
2. 多型探頭輸入：可接受多種溫度探頭，包括鉑PT 100歐姆及熱電偶K、J、T、E、R，提供多樣化的測量選項。
3. 使用者友善設計：配備大型 LCD 顯示器及單元顯示器，方便讀取，具備資料保持功能以儲存所需數值，前面板的感測器選擇按鈕便於探針切換。
4. 寬廣的測量範圍：提供從 -100°C 到 1370°C（K 型）的廣泛測量範圍，並針對不同應用提供 0.01 度及 0.1 度解析度。
5. 耐用且便攜：採用堅固外殼及可選配的重型攜帶箱，便於攜帶與在各種環境下使用。
產品概述

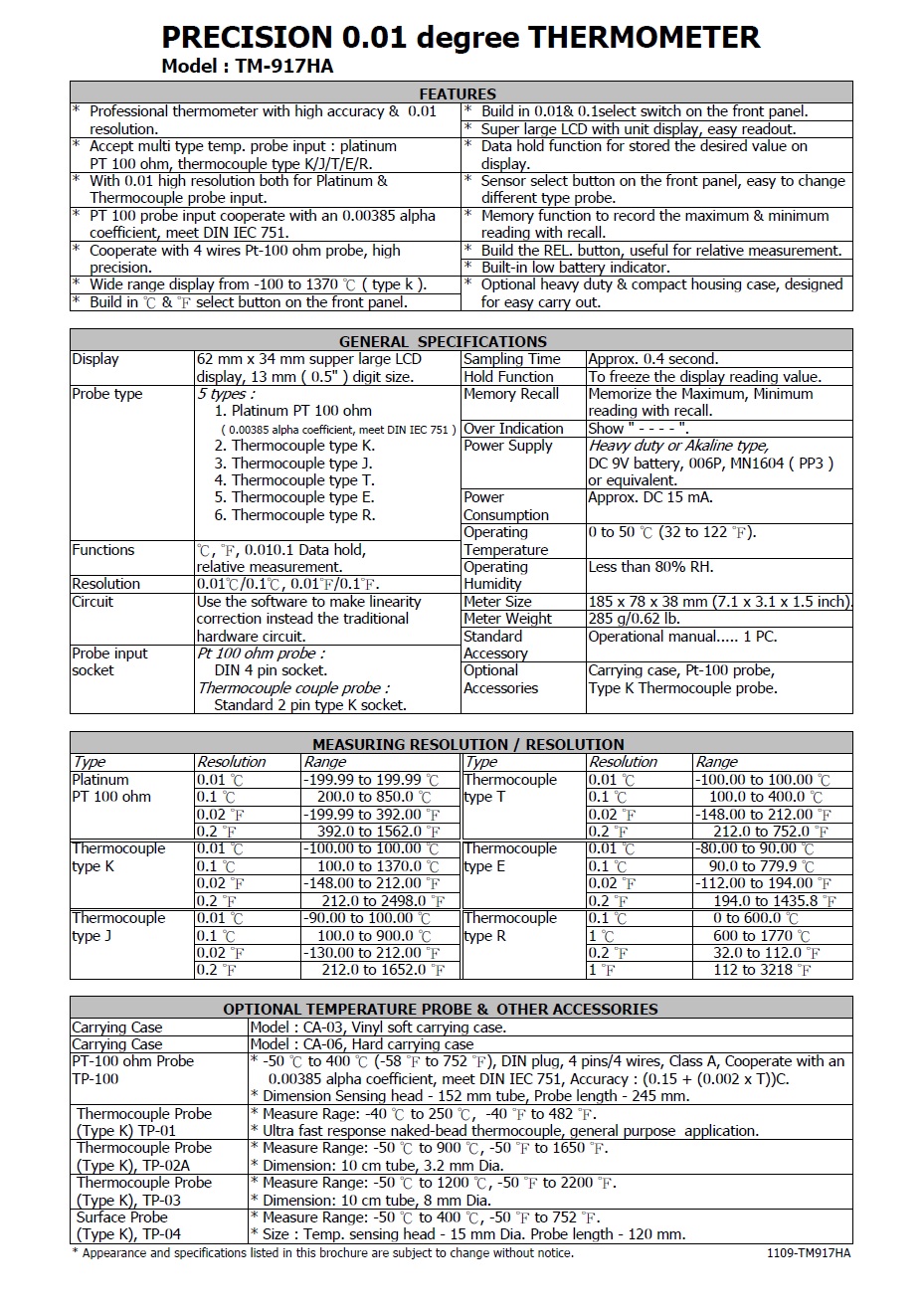

Technical Specifications:
– Display:
– Type: Super large LCD
– Size: 62 mm x 34 mm
-Digit Size: 13 mm (0.5 inch)
– Measurement Functions:
– Probe Types:
– Platinum PT 100 ohm (0.00385 alpha coefficient, meets DIN IEC 751)
– Thermocouple types K, J, T, E, R
– Temperature Range and Resolution:
– Platinum PT 100 ohm:
– 0.01℃: -199.99 to 199.99℃
– 0.1℃: 200.0 to 850.0℃
– 0.02℉: -199.99 to 392.00℉
– 0.2℉: 392.0 to 1562.0℉
– Thermocouple type K:
– 0.01℃: -100.00 to 100.00℃
– 0.1℃: 100.0 to 1370.0℃
– 0.02℉: -148.00 to 212.00℉
– 0.2℉: 212.0 to 2498.0℉
– Thermocouple type J:
– 0.01℃: -90.00 to 100.00℃
– 0.1℃: 100.0 to 900.0℃
– 0.02℉: -130.00 to 212.00℉
– 0.2℉: 212.0 to 1652.0℉
– Thermocouple type T:
– 0.01℃: -100.00 to 100.00℃
– 0.1℃: 100.0 to 400.0℃
– 0.02℉: -148.00 to 212.00℉
– 0.2℉: 212.0 to 752.0℉
– Thermocouple type E:
– 0.01℃: -80.00 to 90.00℃
– 0.1℃: 90.0 to 779.9℃
– 0.02℉: -112.00 to 194.00℉
– 0.2℉: 194.0 to 1435.8℉
– Thermocouple type R:
– 0.1℃: 0 to 600.0℃
– 1℃: 600 to 1770℃
– 0.2℉: 32.0 to 112.0℉
– 1℉: 112 to 3218℉
– General Specifications:
– Sampling Time: Approx. 0.4 second
– Power Supply: Heavy duty or alkaline type, DC 9V battery (006P, MN1604, PP3) or equivalent
– Power Consumption: Approx. DC 15 mA
– Operating Environment:
– Temperature: 0 to 50℃ (32 to 122℉)
– Humidity: Less than 80% RH
– Dimensions: 185 x 78 x 38 mm (7.1 x 3.1 x 1.5 inch)
– Weight: 285 g (0.62 lb)
