Product Name : | WATT METER Model : DW-6063 精密型瓦特錶 |
| Product Origin : | China Taiwan | |
| Product Category : | Lutron | |
| More Products : | Click here! | |
| Contact Details : | 運揚有限公司 WANCO LIMITED | |
| Product Code : | DW-6063 |
Product Details
99.99 W x 0.01 W, 520.0 W x 0.1 W Power factor, ACV, ACA
WATT METER 精密型瓦特錶
Model : DW-6063
===========================================================
FEATURES :
* 0.01 W resolution, precision Watt meter is special for low power measurement.
* Designed for the high resolution low power measurement.
* Watt, Power factor, ACV, ACA.
* True power ( watt ) measurement.
* True rms measurement for ACV, ACA.
* Auto range for Watt measurement :
Range 1 : 0.00 to 99.99 W x 0.01 W.
Range 2 : 100.0 to 520.0 W x 0.1 W.
* Power factor : 0.01 to 1.00 x 0.01 PF.
* ACV : 90.0 to 260.0 V x 0.1 V.
* ACA : 0 to 2.000 A x 0.001 A.
* ACV input impedance : 10 Mega OHM.
* Data Hold, Record ( Max., Min. ).
* RS232/USB Computer interface.
* Optional data Acquisition software, SW-U801-WIN, SW-E802.
* Optional USB cable, USB-01.
Product Attachment

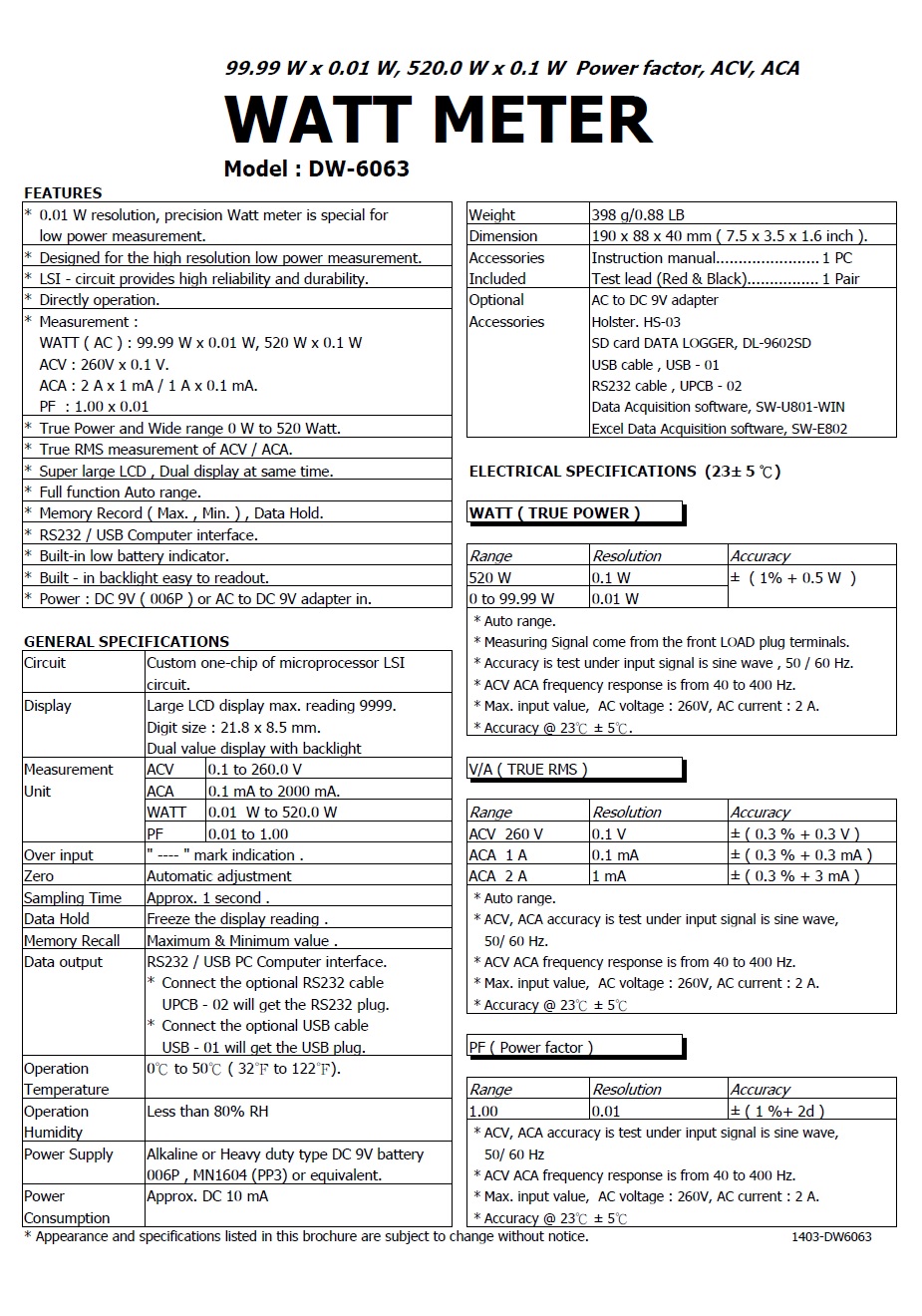

| File Name : DW-6063(2).jpg |
| File Size : 449.30KB File Type : image/jpeg |
