RL3-611-G-2-WT/WT-P5
View Large
Product Name : RL3-611-G-2-WT/WT-P5
Product Origin : Hong Kong S.A.R., China
Product Category : ROCKER SWITCH
More Products : Click here!
Contact Details : 源豐電子有限公司 YUEN FUNG ELECTRONIC LTD.
Product Code : RL3-611-G-2-WT/WT-P5
Product Details
ROCKER SWITCH (船形開關)
ON-OFF 2P SPST
UL / CUL / ENEC14 / CQC

(G): 6(2)A 250VAC T125/55 1E4
10A 125VAC
(H): 10(4)A 250VAC T125/55 1E4
10(2)A 250VAC T85/55 5E4
16A 125V/10A 250VAC 1/3HP
125-250VAC T105
Product Attachment

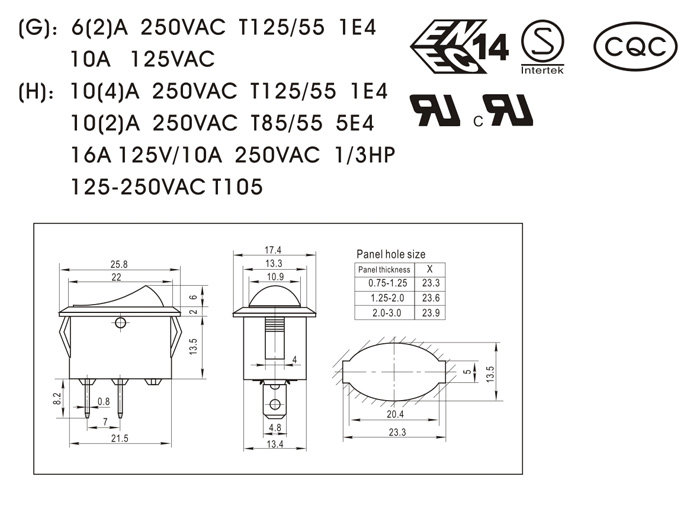

File Name : RL3-611-G-2-BK-BK-P5 (DWG).jpg
File Size : 73.78KB     File Type : image/jpeg
RL3-611-G-2-WT/WT-P5
