DUAL ANGLE VIEW CAMERA SYSTEM ON A SINGLE MOUNT
View Large
Product Name : DUAL ANGLE VIEW CAMERA SYSTEM ON A SINGLE MOUNT
Product Origin : China
Product Category : Color CCD cameras
More Products : Click here!
Contact Details : Topccd2008 Industrial Co.,Ltd.
Product Code : TOP-S5202R
Product Details

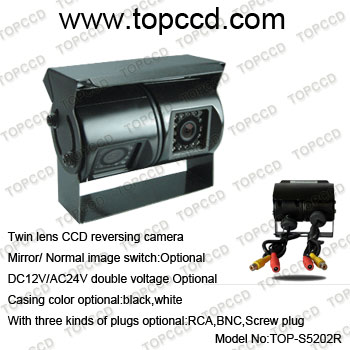

 Twin lens CCD reversing camera


Feature:

1.)2pcs separate cameras to provide full view on the back of the vehicle

2.)Compact size for more convenient installation

3.)Aluminum die-cast housing,waterproof and vandalproof

4.)Day/night sensor automatic adjustment

5.)11 pcs Infrared LEDs for each

6.)3.6mm lens (95 deg) or 2.8mm lens (120 deg)  (Optional )

7.)Mirror Normal image switch (optional)

8.)DC12V or DC12V/AC24V double voltage  (Optional )

9.)Casing color optional:black,white

10.)Plugs optional:RCA,Screw plug



Specification:

Model:TOP-S5202R

1.)Image Device:1/3 inch color SONY CCD

2.)TV System:PAL/NTSC

3.)Effective Pixels:PAL:628(H)*582(V),NTSC:628(H)*492(V)

4.)Sensing Area:4.9mm(H)×3.7mm(V)

5.)Scanning System:2:1Interlace

6.)Sync.System:Internal

7.)Resolution:520TV lines

8.)Horizontal Sync.Frequency (KHZ):15.625/15.734

9.)Vertical Sync.Frequency (HZ):50/60

10.)Minimum Illumination:0 Lux/F1.2 (with IR)

11.)11pcs/F5 Infrared LEDs for each,8m IR working distance

12.)Video Output:Composite Signal (1.0Vp-p, 75Ω )

13.)Gamma Consumption:0.45

14.)AGC:Auto

15.)BLC:Auto

16.)S/N Ratio:48dB

17.)White Balance:Auto

18.)Electronic Shutter:1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds

19.)IP67 Waterproof design

20.)Anti-vibration: 10g

21.)Lens:3.6mm (92 deg) or 2.8mm (120 deg)  (Optional )

22.)Power Supply:DC12V or DC12V/AC24V double voltage  (Optional )

23.)Current Consumption:Max.200mA

24.)Operating Temperature (Deg.C):-30~+70(RH95%MAX.)

25.)Storage Temperature (Deg.C):-40~+80(RH95%MAX.)

26.)Support Normal / mirror image switching by cable control

27.)Casing material: Aluminum

28.)Casing color optional:black,white

29.)Dimension:96 (L) *86 (W) *66 (H) mm

30.)Weight approx: 545g
