Infrared Thermal Imaging Module
View Large
Product Name : Infrared Thermal Imaging Module
Product Origin : China
Product Category : Dome & speed dome cameras
More Products : Click here!
Contact Details : Sun Creative Technologies Inc.
Product Code : NVC004
Product Details

M 100 is a No shutting, high sensitivity, high reliability uncooled thermal imaging core. It has multiple configure and optional lens available, able to meet various applications. M100 integrates with low power consumption, instantaneous boot technology, compact design makes it well-suited for OEM assembly and integration.


Detector Characteristics


Detector Uncooled amorphous silicon FPA


Array format/Pixel pitch 384x288/25um


Sensitivity 80mk@ 300K,50HZ


Frame rate 50Hz


Spectral range 814um


                   Image Processing


Nonuniformity calibration No shutting technology


Instantaneous boot 3s


Noise reduction Digital filter


Image pixel 768X576


Image frame rate 50Hz(PAL) / 60Hz(NTSC)


Lens Optional


              Thermal Imaging Adjustment


Polarity White hot /Black hot


Image mirror  Horizontal/Vertical


Zoom X2X4


Manual Gain Cycle adjustment


Auto Gain Auto adjustment


                       Power Supply


Working voltage range DC: +2.2V+5.5V


Typical working voltage DC: +3.6V


Power consumption 0.6W


Reverse polarity protection Yes


Over voltage protection Yes


                  Environmental


Operating temperature range -20℃~60℃(Typical);-40℃~60℃(Optional


Storage temperature range -50℃~65


Humidity 5%95% Non-condensing



Shock and vibration 100g;3Hz continuousall direction


1000g;10KHz Duration 10msAll direction


800g;10ms PlusAll direction


Anti temperature impact 5/min(-40°C ~ +60°C)


                        Physical


WeightNo lens and back cover 30g


DimensionNo lens and back cover 42x41x21mm


                          Interface


Power port Yes


Serial port RS-232


Analog video output BNC(75Ω);Support dual RS170 CCIR/PAL Composite video


Digital video outputCustomized 16Bit(50Hz)


Keyboard 4 button keyboard


Product Attachment

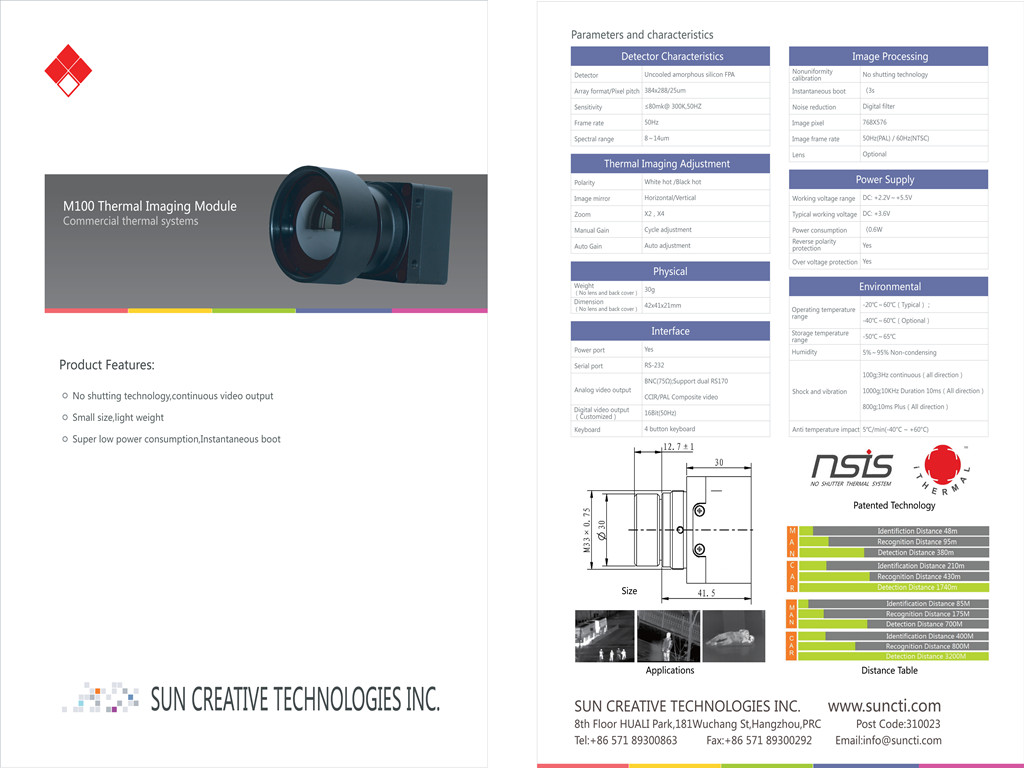

File Name : SCTI M100.jpg
File Size : 138.70KB     File Type : image/pjpeg
Infrared Thermal Imaging Module
